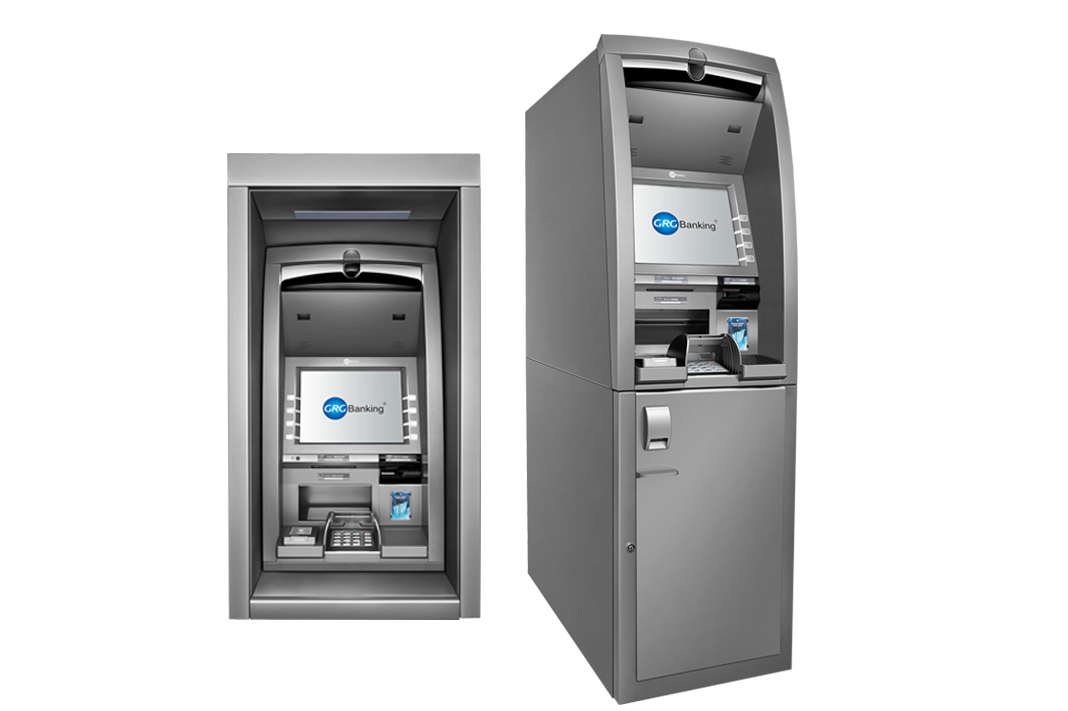

The H68N series is comprised of cutting-edge cash recyclers, which shift heavy counter transactions to self-service zone. Cash recycling technology requires less cash replenishment volume, reduce cash in transit service frequency and therefore significantly cut down the TCO of ATM operation for banks. Designed for large volume cash processing capability, the scalable configuration of H68N-002 series enables the machines to provide more value-added services to customers, such as currency exchange, bill payment, card dispensing, coin dispensing as well as biometric solutions.

Features

Serial Number Tracking

• Featured with the OCR (Optical Character Recognition) technology for cash tracing and tracking, H68N-002 series is capable of recording the serial numbers of notes in and out of the machines, providing support for account reconciliation, fraud and cash shrinkage management for the financial institutions.

Non-stop Incentive

• H68N-002 series can deliver value-added services like currency exchange, utility payment and coin changes dispensing in many applications to extend banking channels, and bring more profit to banks.

Unrivalled Innovation

• Seamless and intelligent cassette exchange between H68N-002 series and other GRG deposit machines, delivers cost-effective yet advanced and secure service for customers. The intelligent and unified cassette in the H68N-002 series supports an end-to-end solution to build up a multi-party management platform.

Premier Security

• Auto cleaning of sundries and foreign objects detection design in cash slot enhance the security of transaction on the machine. Optional security cameras and DVR provide comprehensive transaction monitoring service for bank customer. H68N-002 series is able to configure with GRG SECOne solution, which is a security software based on white list strategy to protect the system and files from software attack.

Specifications

• Controlling Unit
• Intel® Core™ i3/i5/i7 3.3Ghz CPU, 4G RAM (up to 16GB
• 500G HDD (Dual HDD support), DVD-RW
• Windows® XP / 7 /10

Banknote Processing Unit

• Deposit/dispensing speed: 8 notes per second
• Up to 4 recycling cassettes and 1 acceptance cassette
• Recycling cassette capacity: max. 3,350 notes^*
• Acceptance cassette capacity: max. 2,000 notes^*
• ECB Article 6 compliant

Customer Interfaces

• Display
• 15" TFT color LCD with touch screen & 2^*4 function keys
• Privacy filter (opt.)
• Optional brightness of screen
• Keypad
• Tactile 4^*4 alphanumeric keypad
• PCI compliant EPP
• Card reader
• Motorized card reader, Hi-Co & Lo-Co track read
• DIP card reader (opt.)
• Contactless smart card reader/writer (opt.)
• EMV Level 1 and Level 2 compliant
• Anti-skimming design
• Card return on power failure (opt.)
• Retract card capacity: max 30 cards (opt.)

Receipt printer

• 80mm 203DPI graphical thermal printer
• Capture and retract capability
• Journal printer (opt.):
• High speed dot matrix journal printer
• Thermal printer
• 1D & 2D barcode scanner (opt.)
• ADA audio
• Voice guidance support
• High quality loudspeaker and/or headset jack
• Coin Dispenser (opt.)
• Dispensing speed: 8 coins per second
• Hopper capacity: 1.86 liters ^* 4 hoppers, 700-1,000 coins per hopper

Security Physical:

• Mechanical combination lock
• Electronic lock (opt.)
• Sonic alarm modules (opt.)
• UL/CEN Safe
• PCI compliant EPP
• EMV Level 1 and Level 2 certified
• Electro magnetic interference device

Biometric Authentication

• Palm vein reader (opt.)
• Finger vein reader (opt.)
• Finger print scanner (opt.)
• Facial recognition (opt.)
• PIN Pad shield
• Customer awareness mirror
• DVR surveillance system (opt.)
• Transaction image capture for surveillance (opt.)
• SECOne for software and network security (opt.)
• UPS (opt.)

Maintenance

• 10.4" LCD service panel with touch screen (available on rear access model)
• Front, rear and side access

Communication

• Standard TCP-IP connection

Working Environment

• Temperature: Indoor: 32°F(0 °C) to 104°F(40°C)
• Outdoor: -31°F(-35°C) to 122°F(50°C)
• (with optional heating unit)
• Relative humidity: 20% to 95% non-condensing
• ^*  The actual capacity is subject to the thickness and fitness of local currency.
