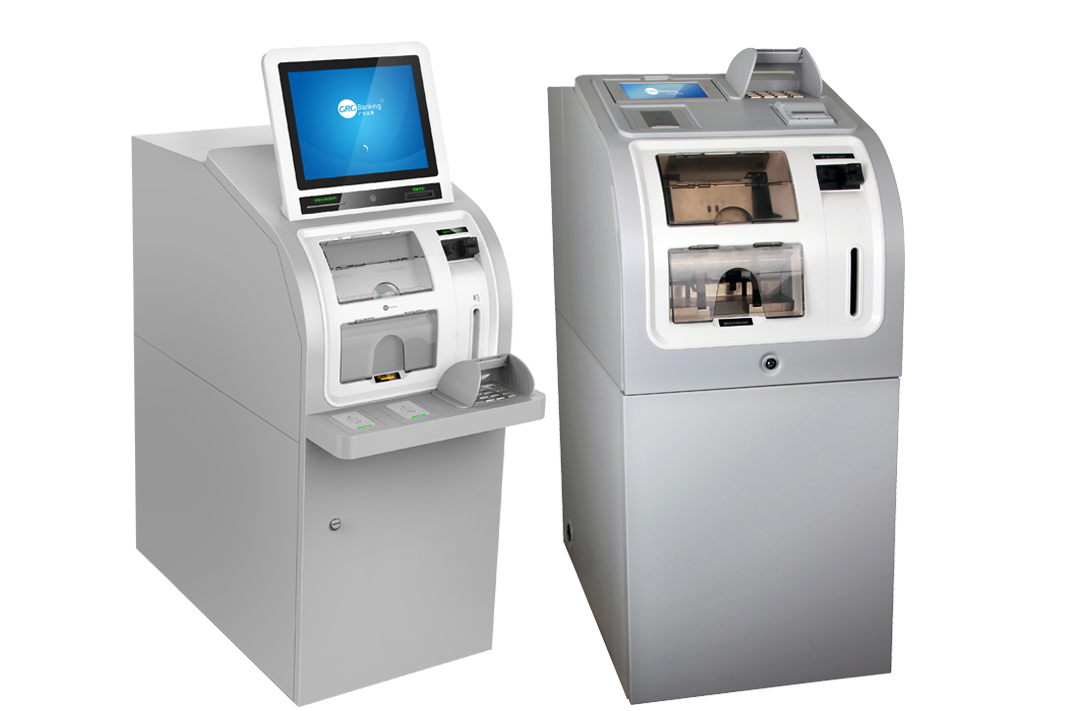

P2800L is comprised of high speed and large capacity cash deposit machines with state of the art technologies like banknote validation, sorting, and serial number tracking. P2800L is the ideal solution for retail back office deposit, bank branch teller automation and CIT resource optimization. P2800L can be applied in any scenario with big volume cash transactions delivering more efficient and secure service.


Intrinsic Performance

P2800L supports continuous cash feeding, authenticates and sorts notes at the speed of 8 notes per second. It comes with maximum 6 cassettes with each cassette holding up to 2,500 notes.

Flexible Configuration

P2800L can be configured with EPP and contactless card reader. Each cassette can be configured with specific denomination and capacity. Both GRG deposit cassette and intelligent cassette are supported.

Premier Security

UL291 Level 1 safe, built-in fraud resistant card-reader, anti-fishing envelops deposit slot, optional vibration alarm and remote monitoring software solution ensure a secure transaction environment. PCI EPP is available on P2800L, which enables P2800L to be suitable for self-service application.


  • Controlling Unit
  • Intel® Atom™ D2550 1.86G CPU, 4G RAM 500G HHD
  • Windows® 7

Banknote Processing Unit

  • Bulk note deposit module:
  • Processing speed: 8 notes/second
  • Entrance capacity: 500 notes/continuous feed
  • Cash reject capacity: Max. 50 notes
  • Cash storage: cassettes or cash box Cassette: Max.2,500 notes*×4 or 6 Cash box: Max.20,000 notes*
  • Supported denomination: 32

Customer Interfaces Display

  • 15″ LCD touch screen Card reader:
  • DIP card reader/writer
  • Motorized card reader (opt.)
  • Contactless smart card reader/writer (opt.) Receipt Printer:
  • 80mm 203DPI graphical thermal printer EPP
  • Barcode scanner (opt.) Fingerprint scanner (opt.) UPS (opt.)
  • Envelop Deposit (opt.)
  • For small changes and voucher deposit Max. capacity: 20 pieces
  • Anti-fishing design


  • Front or rear access
  • 10.4” LCD service panel with touch screen (only for P2800)

Security Physical

  • Mechanical combination lock
  • Electronic lock (opt.)
  • Standard UL291 Level 1 safe EMV compliant
  • Transaction image capture for surveillance (opt.)


  • Standard TCP-IP connection

Working Environment Temperature:

  • Indoor: 32°F(0°C) to 104°F(40°C) Outdoor: -31°F(-35°C) to 122°F(50°C) (optional heating unit is required)
  • Relative humidity: 20% to 95% non-condensing
